Migrating Azure AD Connect

Microsoft Office 365, Windows Server

Don’t waste time figuring out how to migrate Azure Active Directory from one server to another. Do it quick and don’t waste your time and get it done within an hour.

Prerequisite

An Active Directory User Account with Domain and Enterprise Admin access
An O365 Account with either Global Administrator or Hybrid Identity Administrator
1. MFA must not be enabled on the 365 Account
The Server must be either 2016, 2019, or 2022 with a GUI. No server core

Exporting Configuration from the Old Server

Open Azure AD Connect
Click the green “Configure” button
In the second row, “View or export Current Configuration” and hit the “Next” button

Click the “Export Settings” button and save the file as a JSON. We will need this file later.

Configuring the new server

Enable TLS 1.2

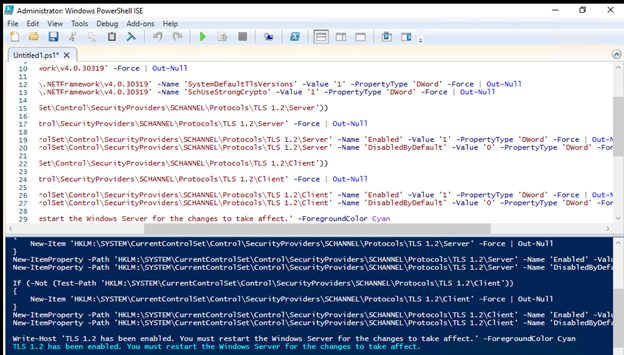

1. Run the script below in an admin PowerShell session, you can also copy the code from Microsoft here.
2. After TLS 1.2 is enabled, reboot the server.


					If (-Not (Test-Path 'HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319'))
{
    New-Item 'HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319' -Force | Out-Null
}
New-ItemProperty -Path 'HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319' -Name 'SystemDefaultTlsVersions' -Value '1' -PropertyType 'DWord' -Force | Out-Null
New-ItemProperty -Path 'HKLM:\SOFTWARE\WOW6432Node\Microsoft\.NETFramework\v4.0.30319' -Name 'SchUseStrongCrypto' -Value '1' -PropertyType 'DWord' -Force | Out-Null

If (-Not (Test-Path 'HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319'))
{
    New-Item 'HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319' -Force | Out-Null
}
New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319' -Name 'SystemDefaultTlsVersions' -Value '1' -PropertyType 'DWord' -Force | Out-Null
New-ItemProperty -Path 'HKLM:\SOFTWARE\Microsoft\.NETFramework\v4.0.30319' -Name 'SchUseStrongCrypto' -Value '1' -PropertyType 'DWord' -Force | Out-Null

If (-Not (Test-Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server'))
{
    New-Item 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server' -Force | Out-Null
}
New-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server' -Name 'Enabled' -Value '1' -PropertyType 'DWord' -Force | Out-Null
New-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Server' -Name 'DisabledByDefault' -Value '0' -PropertyType 'DWord' -Force | Out-Null

If (-Not (Test-Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client'))
{
    New-Item 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client' -Force | Out-Null
}
New-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client' -Name 'Enabled' -Value '1' -PropertyType 'DWord' -Force | Out-Null
New-ItemProperty -Path 'HKLM:\SYSTEM\CurrentControlSet\Control\SecurityProviders\SCHANNEL\Protocols\TLS 1.2\Client' -Name 'DisabledByDefault' -Value '0' -PropertyType 'DWord' -Force | Out-Null

Write-Host 'TLS 1.2 has been enabled. You must restart the Windows Server for the changes to take affect.' -ForegroundColor Cyan

Download Azure AD Connect from the Microsoft link here or from us here. This will be version 2.3.20.0
Run the installer, and on the welcome screen, accept the license terms and privacy notice and hit the “Continue” button
Hit the “Customize” button
Click the “Import synchronization settings” checkbox
1. Click the “Browse” button and find the file from step 4 in the section: Exporting Configuration from the Old Server
2. Hit the “Install” button

Enter the O365 account that is either a Global Administrator or Hybrid Identity Administrator and hit the “Next” button

Click the “Change Credential” button

In the popup, enter the Active Directory account with Domain and Enterprise Admin and hit the “OK” button.
1. The format is domainName\UserAccount
2. Once the popup window closes, hit the “Next” button and hit the “Next” button again

Uncheck “Start the synchronization process when configure completes” and click the “Install” button

Once the installation finishes, hit the “Exit” button

Stopping the Sync from the Old Server

Open Azure Active Directory and hit the “Configure” button
Click the row “Configure staging mode” and “Next” button

Enter the O365 account that is either a Global Administrator or Hybrid Identity Administrator and hit the “Next” button

Enter the O365 account that is either a Global Administrator or Hybrid Identity Administrator and hit the “Next” button

Select the “Configure” button and then the “Exit” button

Enabling Sync on the New Server

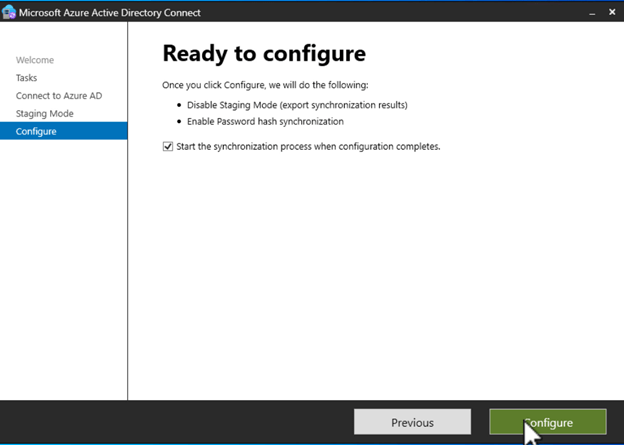

Repeat the steps, but instead of checking the box for “enable staging mode,” you will uncheck it. Hit the “Next” button

After Azure Active Directory closes, visit https://admin.microsoft.com/ and check for AD sync.
1. You might need to wait for a few minutes while sync completes.
